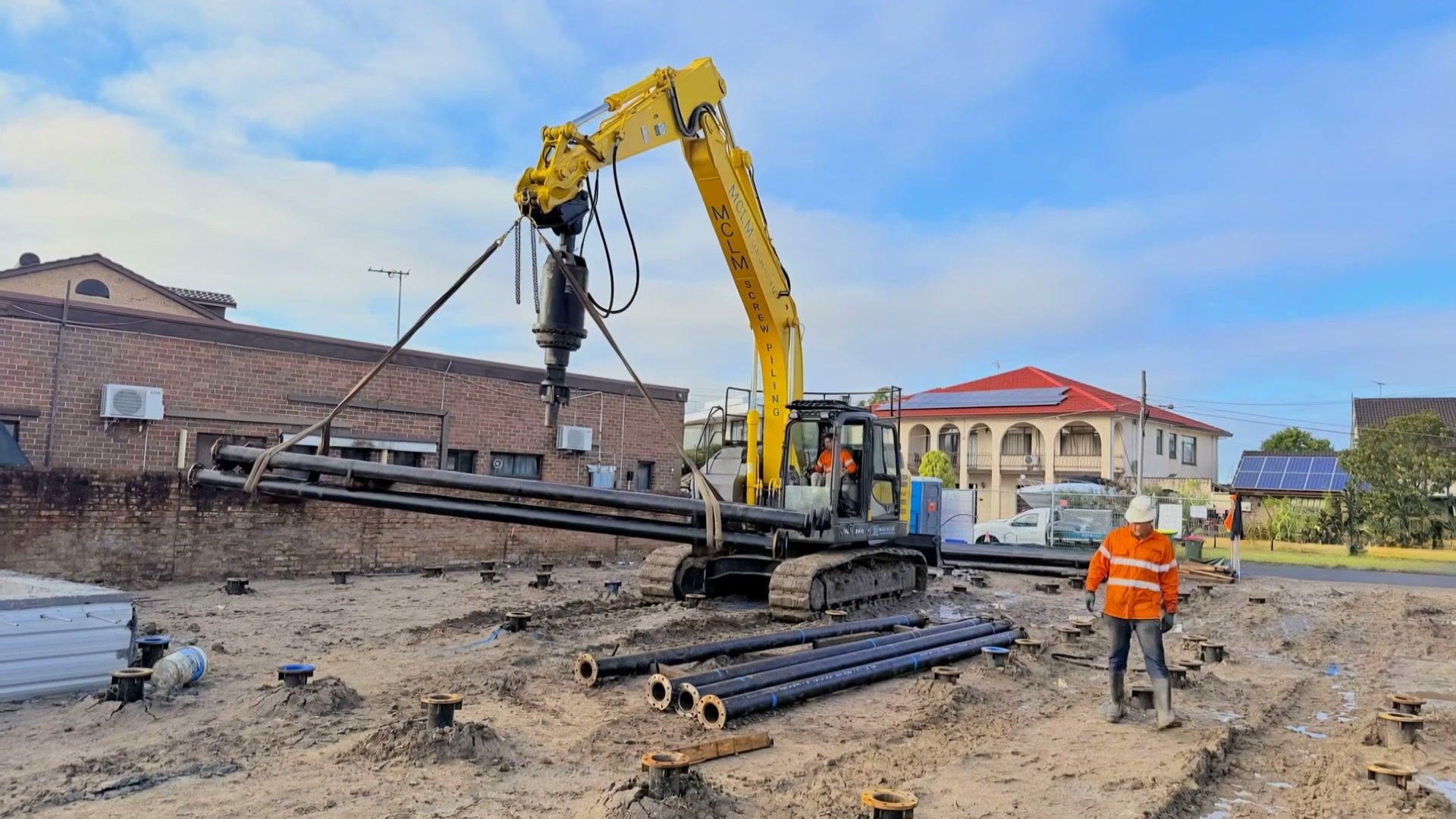

Screw pile installation on a residential construction site

Compatibility

Versatilefoundationsolutions

Engineered to integrate with concrete platforms and steel leg systems across residential, commercial and industrial projects.

Explore range

One engineered foundation

Built to integrate across platforms, leg systems and project types.

From concrete platforms to modular steel arrangements, the Multiturn Helix can be configured around the soil conditions, load requirements and build timeline of the project.

Platform systems
Leg arrangements
Project types

System pairings

One helix.
Two structural routes.

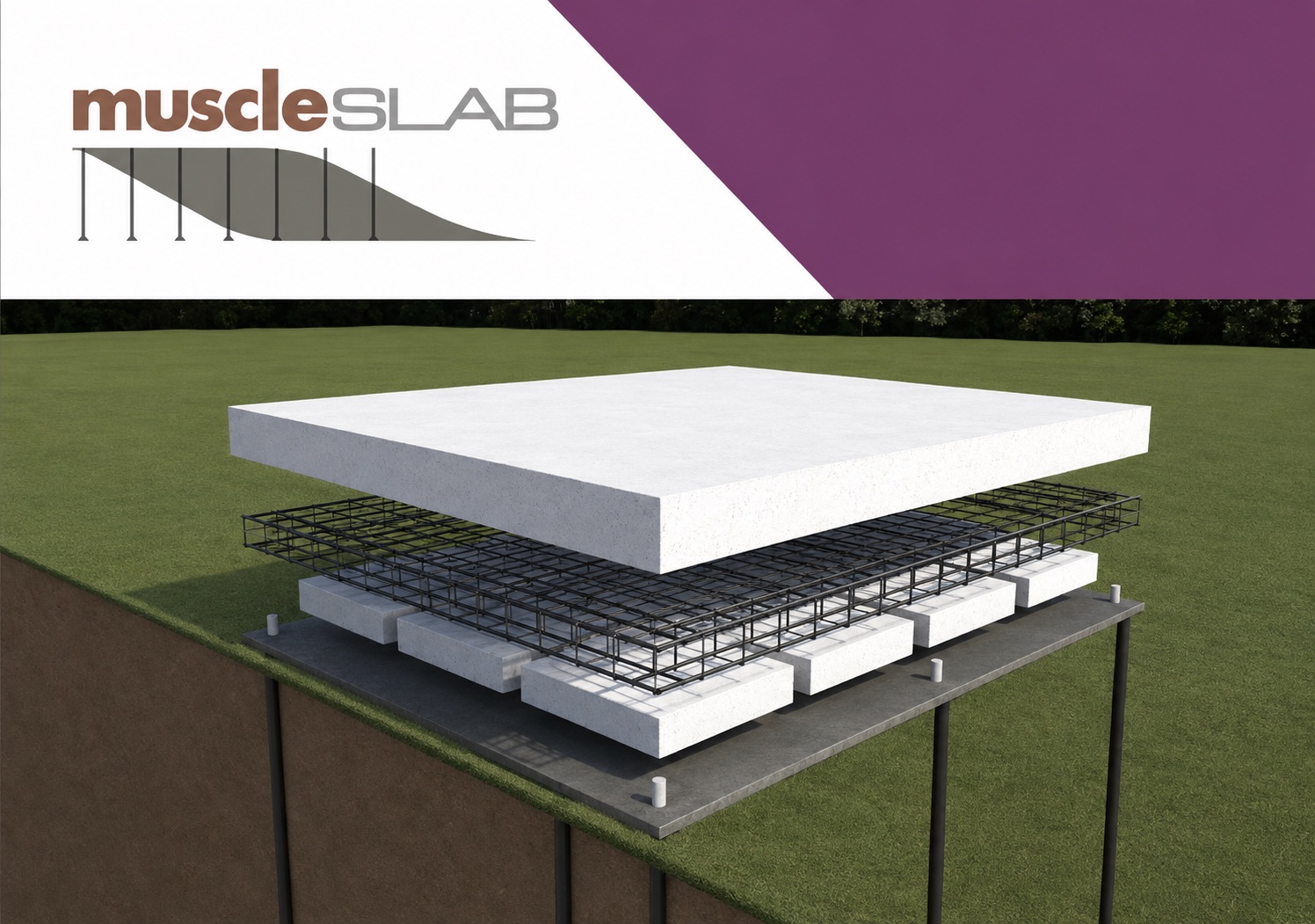

Concept rendering of a MuscleSlab platform and screw pile interface

Concrete platforms

MuscleSlab integration

When a project demands the strength of concrete with the speed of screw pile installation, Multiturn Screw Piles and MuscleSlab work as a combined foundation system.

The steel Multiturn Helix integrates directly with MuscleSlab's concrete platform and leg arrangements. Unlike traditional concrete footings, the combined system eliminates curing time while delivering the load-bearing strength and certification the project requires.

  • High volume industrial builds
  • Residential construction on difficult or reactive soils
  • Sites requiring specialist foundation solutions
Steel screw pile leg components prepared for installation

Steel leg systems

A foundation below the movement

The Multiturn Helix is designed to perform across a wide variety of soil types, including the reactive clay soils that cause problems for conventional foundation systems.

The helix anchors below the active soil zone. By sitting beneath the layer most affected by moisture change, it resists the forces of clay movement and provides a stable, certified foundation across seasons.

  • Solar Leg compatibility
  • Major steel leg arrangements
  • Round and square shaft configurations

Application range

From a single platform to a large-scale site.

The same foundation logic carries across residential, commercial and industrial applications.

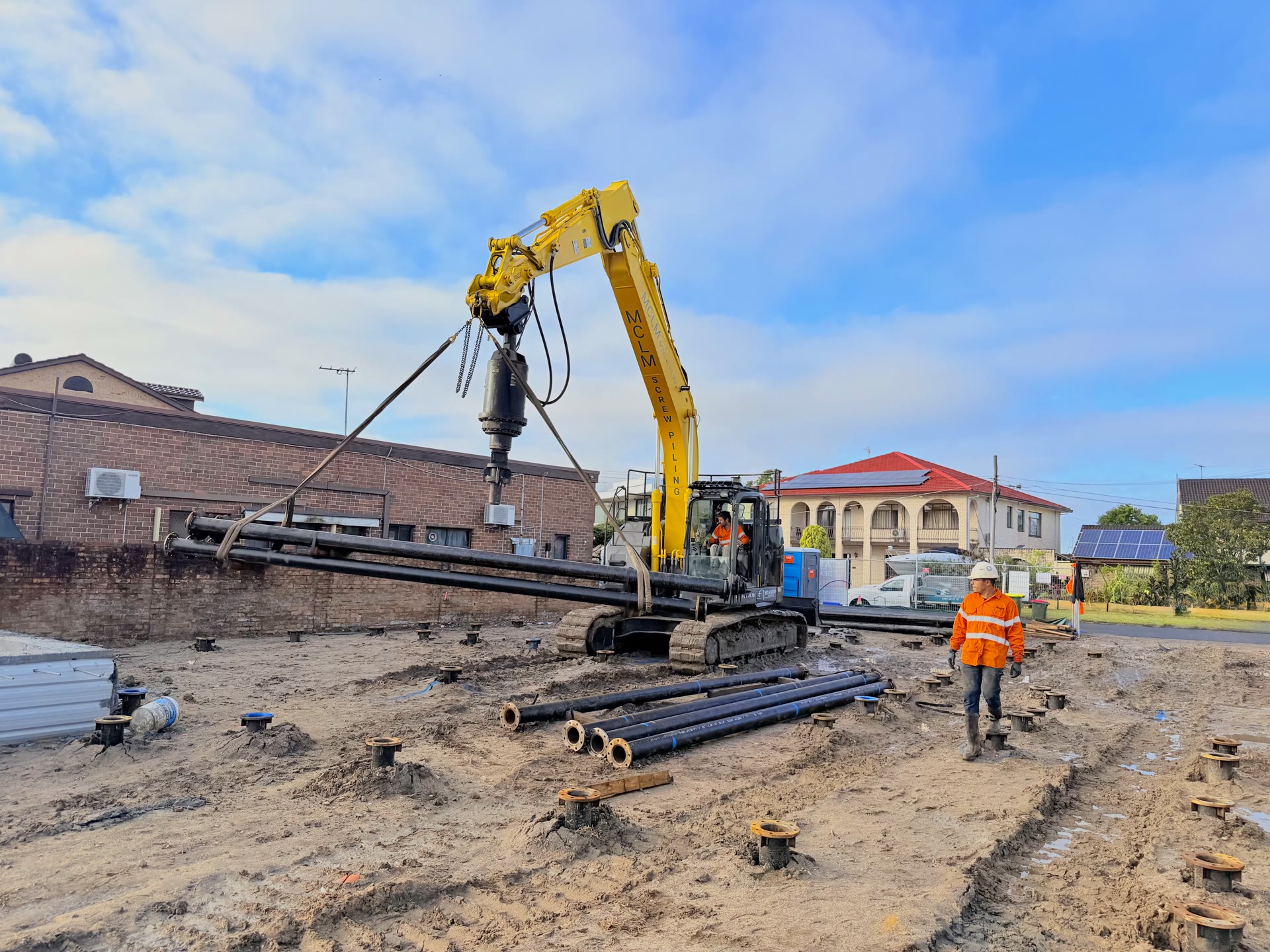

Residential construction supported by steel screw piles

Residential

Construction on difficult or reactive soils.

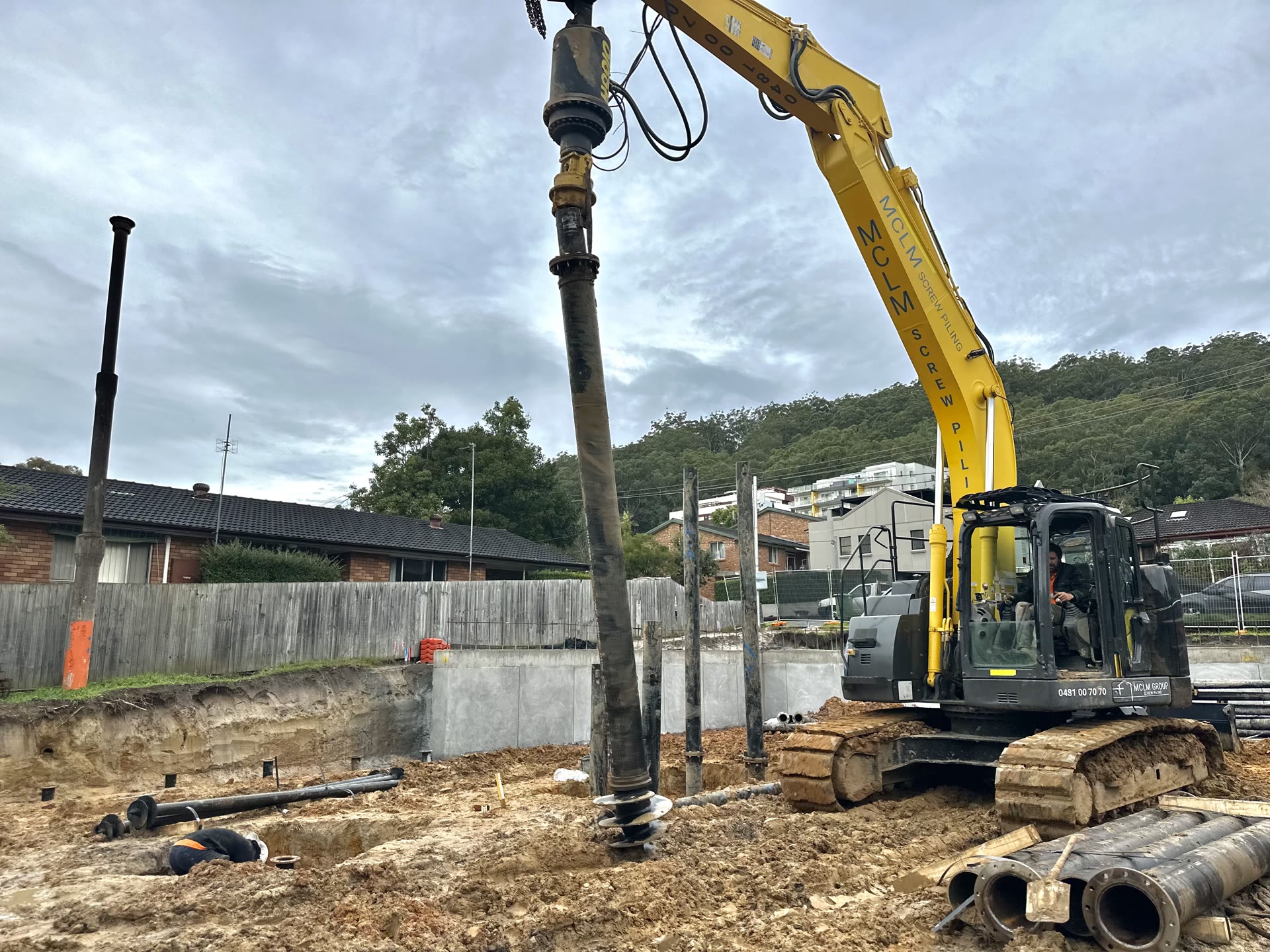

Screw pile installation beside a multi-storey commercial development

Commercial

Modular leg arrangements and specialist structural systems.

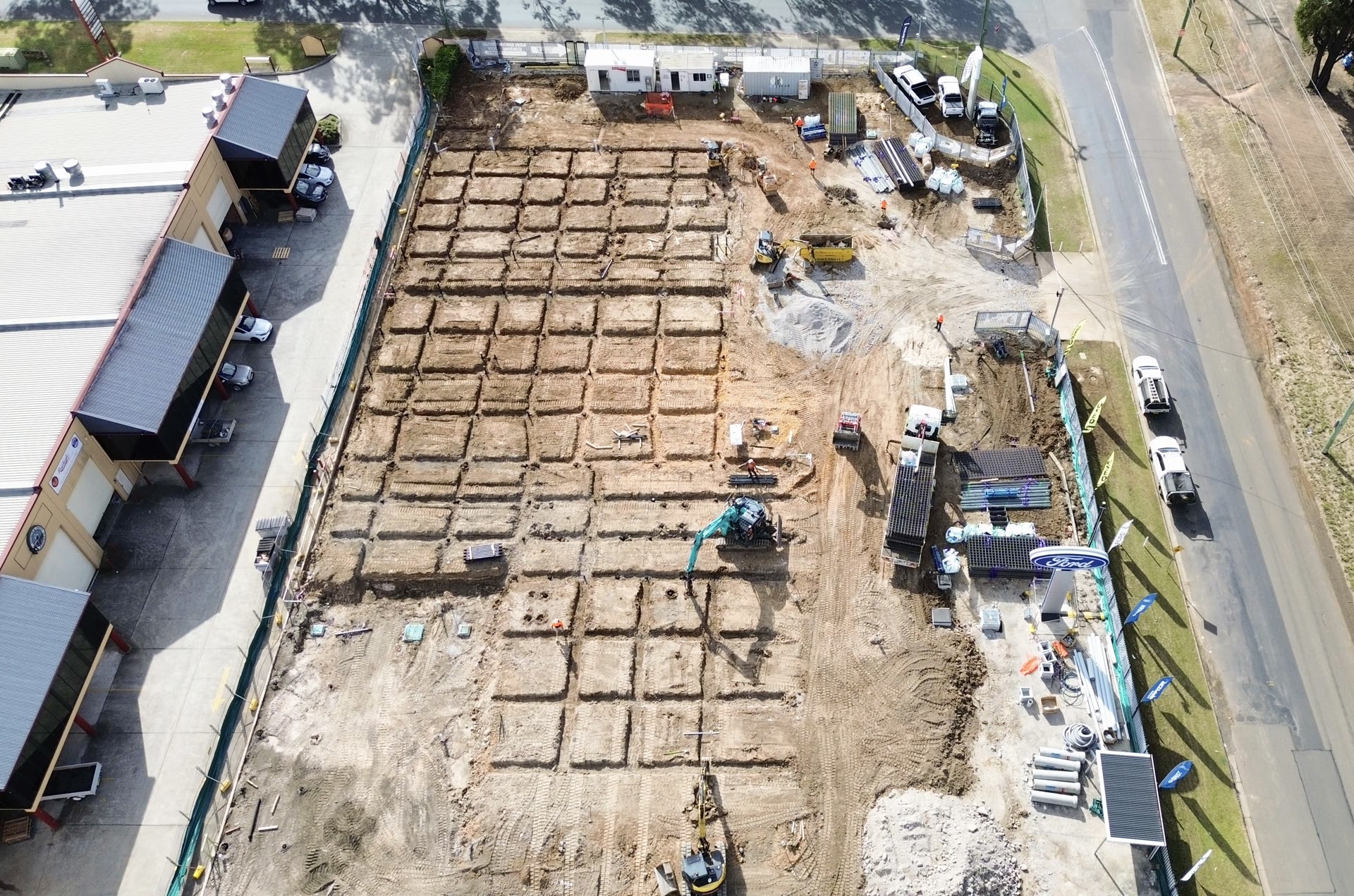

Aerial view of the foundation layout and piling equipment across a large construction site

Industrial

High volume industrial builds.

Reactive soil performance

Designed to anchor below the active clay zone.

The Multiturn response

The Multiturn Helix sits beneath the layer of soil most affected by moisture change, resisting the forces of clay movement and providing consistent foundation performance across seasons.

Multiturn helix below the active clay zoneSection showing a long steel shaft through the active clay zone. The stepped coupling, continuous tapered cast helix and cutting tip sit below this zone in stable ground. Active-zone depth and pile specification are site-specific. Conceptual, not to scale.
Conceptual section only. Active-zone depth and pile specification are site-specific.

Configure the system

Build from the right foundation.

Our team can advise on the right configuration for your soil conditions, load requirements and build timeline.
